DJIWireless Mic System

About

With DJI Mic, you can now easily record audio that matches the quality of your videos. It's ideal for creators looking to gain an edge and elevate their content to the next level. It delivers exceptional sound quality and dual-channel recording at distances of up to 250 m. Switch on, connect, and record crystal-clear audio on the go.

Product Features

Dual-Channel Recording

• DJI Mic comes with two transmitters, each with built-in microphones
• Both transmitters support omnidirectional audio, making them ideal for multi-person interviews and small studio operations

High-Quality Audio

• DJI Mic allows you to record high-fidelity, professional audio by accurately reproducing tone across a wider frequency range
• Recordings can be made separately via each channel, or the two channels can be combined for flexibility in post-production

Built-in Touchscreen and Onboard Memory

• The receiver's touchscreen display gives you easy access to channel selection, input/output settings, and other essential operations
• Both transmitters come with 14 hours of built-in storage to prevent audio frame drop, loss, and other issues

Wireless Transmission

• Enjoy clear and reliable audio, even in complex scenarios
• The transmitters and receiver communicate via powerful wireless transmission that keeps audio stable while reducing sound delay, even at long distances

250m Transmission Range

• Using DJI's latest encryption technology, DJI Mic is capable of recording crisp audio at distances of up to 250 meters

Wireless Convenience

• The entire DJI Mic system is wirelessly connected via a stable 2.4GHz frequency band, which allows you to move with complete freedom as you record your adventure

Powerful Anti-Interference

• The optimized wireless transmission system ensures a stable stream of audio, even in areas such as train stations, shopping malls, and offices

Wearable and Portable

• Conveniently attach a transmitter to whatever you're wearing via the integrated back clip or by using the clip magnets
• Weighing approximately 30 grams, wearing the transmitter is comfortable and seamless

Vastly Compatible

• Different devices mean different input adapters, and DJI Mic covers them all
• The receiver has USB-C, Lightning, and 3.5mm TRS ports, making it compatible with mainstream smartphones, cameras, and laptops

Ultra-Long Battery Life

• Get a full day of audio recording with DJI Mic
• Enjoy 5.5 hours of battery life from the transmitters, 5 hours from the receiver, and up to 15 hours with the charging case

Lightning-Fast Pairing

• Both the transmitters and the receiver will automatically pair as soon as you place them in the charging case
• Simply complete the initial setup and be ready to record exceptional audio in seconds

Product Specifications

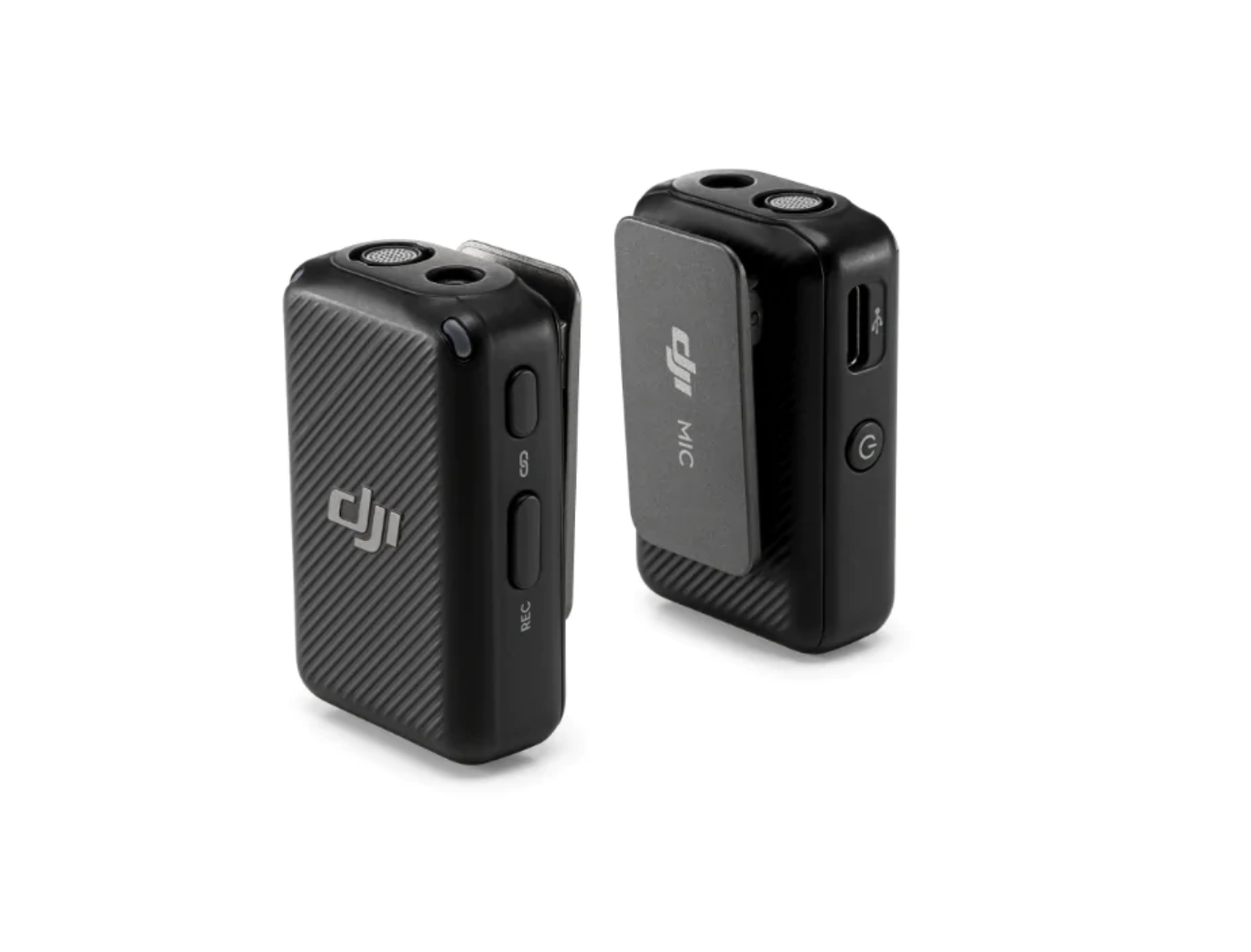

DJI Mic Transmitters

• Dimensions: 47.32 x 30.43 x 20.01 mm
• Weight: 30 g
• Wireless Mode: GFSK 1 Mbps and 2 Mbps
• Equivalent Isotropic Radiated Power (EIRP): <20 dBm
• Operating Frequency: 2400-2483.5 MHz
• Battery Type: LiPo 1S
• Battery Capacity: 320 mAh
• Battery Energy: 1.23 Wh
• Battery Voltage: 3.85 V
• Charging Temperature: 5 to 45° C (41° to 113° F)
• Operating Temperature: -10° to 45° C (14° to 113° F)
• Charging Time: 70 mins
• Operating Time: 5.5 hours

DJI Mic Receiver

• Dimensions: 47.44 x 32.21 x 17.35 mm
• Weight: 24.9 g
• Wireless Mode: GFSK 1 Mbps and 2 Mbps
• Equivalent Isotropic Radiated Power (EIRP): <20 dBm
• Operating Frequency: 2400-2483.5 MHz
• Battery Type: LiPo 1S
• Battery Capacity: 320 mAh
• Battery Energy: 1.23 Wh
• Battery Voltage: 3.85 V
• Charging Temperature: 5 to 45° C (41° to 113° F)
• Operating Temperature: -10° to 45° C (14° to 113° F)
• Charging Time: 70 mins
• Operating Time: 5 hours

Charging Case

• Dimensions: 103.06 x 61.87 x 41.50 mm
• Weight: 162.2 g
• Battery Type: LiPo 1S
• Battery Capacity: 2600 mAh
• Battery Energy: 10 Wh
• Battery Voltage: 3.87 V
• Charging Temperature: 5 to 45° C (41° to 113° F)
• Operating Temperature: 5 to 45° C (41° to 113° F)
• Charging Time: 2 hours and 40 mins
• Operating Time: Fully charge three devices simultaneously 1.8 times

General

• Microphone Directions: All Directions
• Frequency Response
• Low Cut Off: 50 Hz - 20 kHz
• Low Cut On: 150 Hz - 20 kHz
• Max Sound Pressure Level (SPL): 114 dB SPL
• Max Input Level (3.5 mm): -17 dBV (THD < 0.1%)
• Equivalent Noise: 23 dBA
• Monitor Interface Output Power: Max Output 22mW@1kHz, 32Ω
• Max Transmission Distance (Measured in an unobstructed outdoor environment free of interference)
• 250 m (FCC)
• 160 m (CE)
• 12-month warranty

What's in the box

• 1x DJI Mic Receiver
• 2x DJI Mic Transmitter
• 1x DJI Mic Charging Case
• 1x DJI Mic Camera Audio Cable (3.5mm TRS)
• 1x DJI Mic Mobile Phone Adapter (Type-C)
• 1x DJI Mic Mobile Phone Adapter (Lightning)
• 2x DJI Mic Windscreen
• 2x DJI Mic Clip Magnet
• 1x DJI Mic Carrying Pouch
• 1x DJI Mic Hot Shoe Adapter
• 1x Charging Cable
• 1x Instruction Manual
