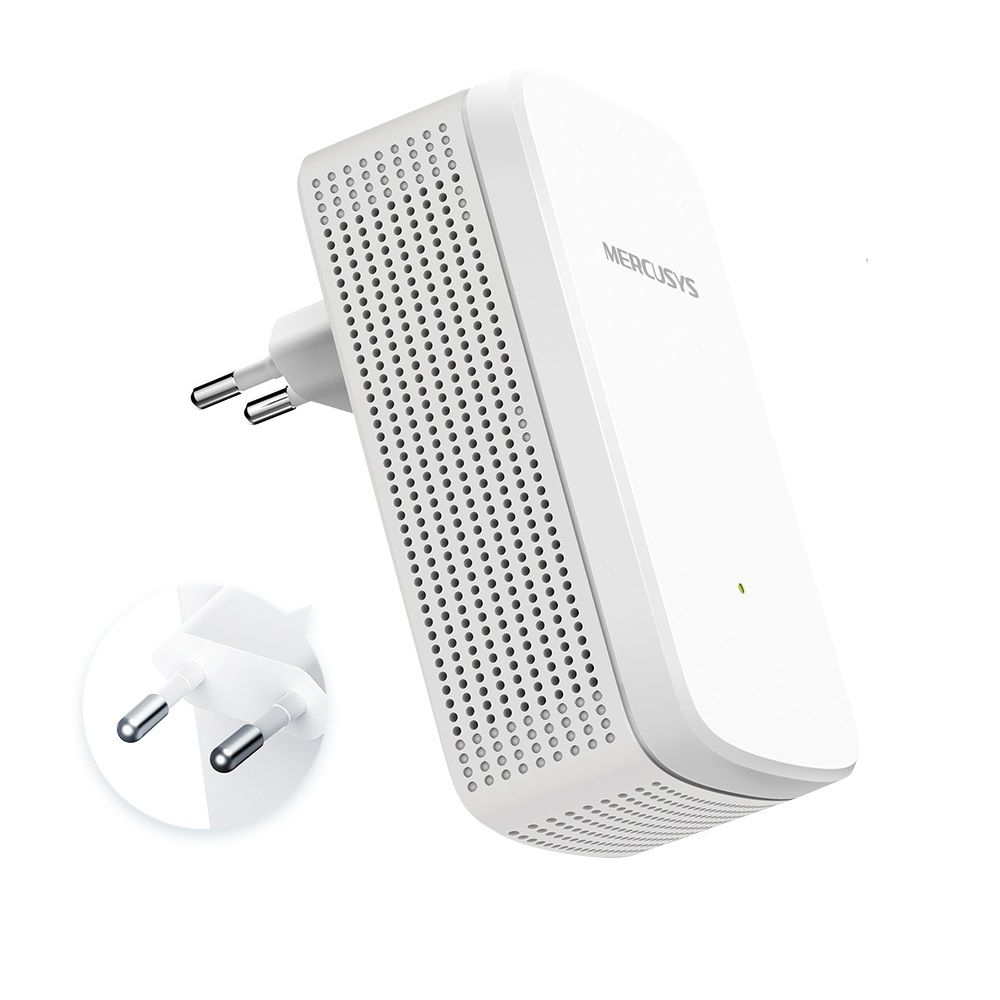

Mercusys ME20 AC750 Wi-Fi Range Extender

A single router always has limited coverage and leaves WiFi dead spots in your home. ME20 boosts the existing WiFi range of your host router to the previously unreachable or hard-to-wire areas flawlessly, providing stable and fast dual-band WiFi wherever you need it.

ME20 keeps more devices connected simultaneously with its dual bands. Use the 2.4 GHz band to send an email and browse the web, and the 5 GHz band for gaming and HD streaming.

ME20 keeps your network running at top speed by intelligently choosing the best available route and band for your data.

The backhaul traffic over the same bands essentially cuts the speeds in two when the extender broadcasts on the dual bands simultaneously. High Speed mode helps you get most of your HD entertainment by using one dedicated band as backhaul and another band as an access point to maximize the overall performance of your wireless network.

Product Features

• Eliminate WiFi Dead Zones — Boosts WiFi signals to previously unreachable or hard-to-wire areas flawlessly
•  AC750 Dual Band WiFi — Keep your whole home connected with strong WiFi expansion at a combined speed of up to 750 Mbps
•  Easy One-Touch Setup — Simply press the WPS button to expand your WiFi coverage in seconds
•  Signal Indicator — Multicolor LED helps you find the right location for your range extender for the best WiFi extension
•  Fast 10/100 Mbps Port — Provides speedy wired connections for PCs, IPTVs, and game consoles
• Works with Any Router or Wireless Access Point

Product Specifications

• Wireless Standards: IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz
• Frequency: 2.4 GHz - 2.5 GHz, 5 GHz
• Signal Rate: Up to 750 Mbps (433 Mbps on 5 GHz, 300 Mbps on 2.4 GHz)
• Reception Sensitivity
• 5 GHz: 11AC VHT80 MCS9＜ -63dBm
• 2.4 GHz: 11N HT40 MCS7＜ -71dBm
• Transmission Power: 2.4 GHz: ≤30dBm; 5 GHz: band1 & band4 ≤30dBm; band2 & band3 ≤24dBm
• Interfaces: 1x 10/100 Mbps RJ45 Port
