HuaweiIsitepower-M 1PH Back-Up Kit 5KW Inverter 10KWh Battery Li-Ion

Please Note:

• Requires installation be a Huawei preferred installer or a qualified electrician with a Wire Man's licence, who must supply a Certificate of Compliance after installation. Failure to provide the mentioned certificate of compliance and installation details may result in the voiding of your warranty
• The Luna Power Module only works with the Luna Battery Module, these 2 combined to be the back up power source for the Fusion Inverters
• Designed for use with the Huawei IsitePower-M ESS Power Module. We recommend the purchase of the power module for maximum efficiency as designed for use of all features
• This Product includes, Huawei Isitepower-M Mounting Base

About

More than your standard Lithium Battery, these cutting edge batteries can be discharged to 100% without damaging the battery. Depth of discharge here refers to how much of the total battery capacity has been used. Standard Lithium batteries can only get to 80% without damaging the battery. Most Lead Acid and AGM batteries only reaching around 55% discharged without damaging the battery With Huawei’s cutting edge technology you get every drop of power from your battery every time.

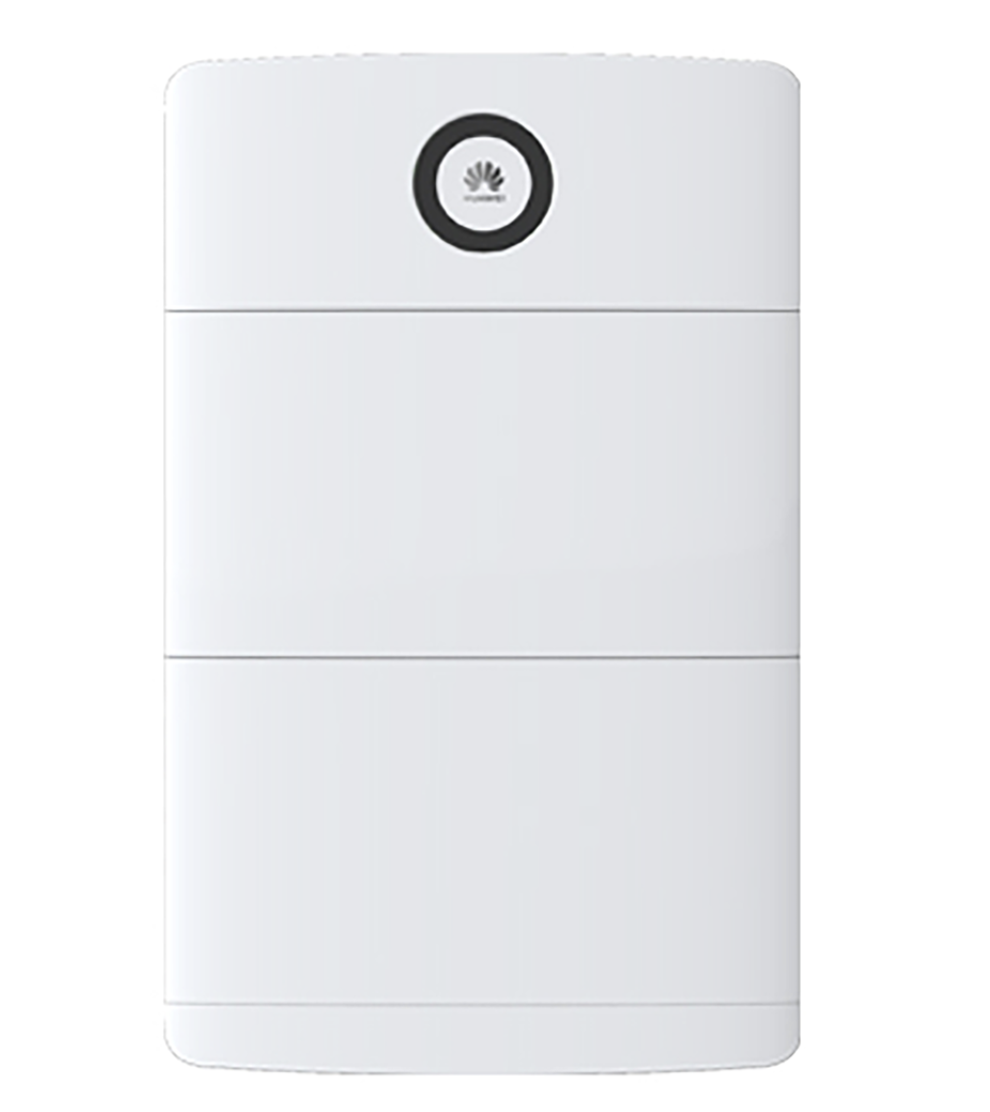

iSitePower-M is a small-scale hybrid power solution. It integrates power supply, backup power, and management. It is widely used in off-grid and unreliable grid areas and provides reliable and stable backup power for residences, apartments, shops, and emergency scenarios. iSitePower-M features a high-density design, small size, light weight, and IP65 protection level. It can be installed indoors, or on outdoors

Product Feature

AC Output

• Rated Power Output: 6 kVA / 5 kW
• Output Voltage: 230 VAC/50Hz
• Max. Output Current: 25.8A
• Max. Bypass Input Power: 6kW

AC Input

• AC Input Voltage: 230VAC/50Hz
• Surge Protection: 3 kVA/5 kVA, 8/20 s
• Max. Input Current: 30

PV Input

• Start-up Voltage: 100VDC
• MPPT Voltage: 90-420VDC
• Max. Input Voltage (Voc): 435VDC
• Max. Input Current (Isc): 2 x 15 A
• Recommended PV Power: 5000 Wp
• No. PV Strings/MPPT Routes: 2/1
• Optimizer Compatibility: DC Mbus Compatible
• DC Surge Protection: 10 kA, 8/20 s, criterion C
• Max. Input Current per Strings: 15 A

General

• Communication: Wi-Fi
• Display: LED's, NetEco
• Battery Module Capacity: 5 kWh per module
• Max. Output Power: 2.5kW per Module, 5kW per ESS
• Output/Input Voltage: 370-480VDC
• Cycle Life: 6000 cycles @ 25 C, 100% DOD
