DABEsybox Pressure Pump with Filter

About

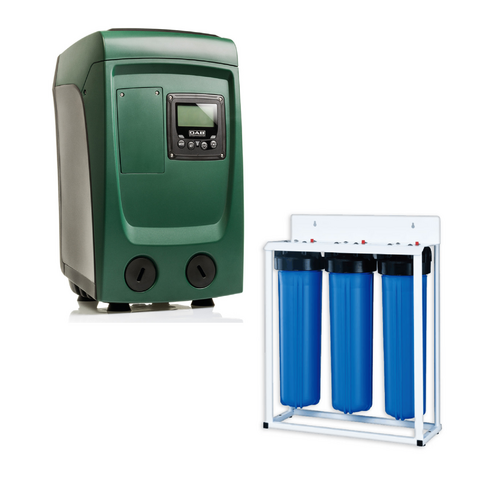

Esybox Mini 3

Esybox Mini 3 has a different appearance than any other booster set and is small and completely integrated. Once you install and use it, you realize that the real difference is in the comfort and performance. Esybox Mini 3 uses the most advanced DAB technologies to create constant pressure according to the system demands and thus an optimization of energy consumption. It is possible to create groups of maximum two pumps. It supports the remote control function thanks to the DConnect service integrated directly into the system.

Esybox

Esybox is a patented booster system, unique in its category, with high performances, efficient, compact, easy and satisfying in the use both for the installer and the final user.
When Esybox mini is the solution for water boosting in small dwellings, Esybox offers the same advantages in collective residential applications, such as villas or condos. Wireless technology allows to set up booster sets up to 4 pumps.

Big Blue Filtration System

Big Blue water filters work as point-of-entry (POE) systems, meaning they filter water as it enters a home’s plumbing system. This type of treatment provides chemical free filtered water to every faucet and water source in the house. Filtering water through a whole house water filter eliminates the risks of both drinking and showering in contaminated water.

Product Features

Esybox Mini 3

• Apartments up to 3 floors, 2 bathrooms and 50m2 of garden
• Compact and completely integrated, it's suitable for use with drinkable water, in domestic systems and gardening applications
• Managing the water pressure in your home has never been so easy and quiet
• Class leading variable speed drive (VSD) technology
• Please use pump cover with installation

Esybox

• Houses and small apartment complexes up to 6 floors and a maximum of 9 apartments
• Compact and completely integrated, it's suitable for use with drinkable water, in domestic systems and gardening applications
• Managing the water pressure in your home has never been so easy and quiet
• Class leading variable speed drive (VSD) technology
• Please use pump cover with installation

Big Blue Filtration System

• Friendly to the environment
• Can be used for domestic and industrial applications
• Supplies pre-filtered water to every tap in house
• Reducing chlorine and chemicals in water supply
• Removes sand, silt, slime, rust, mud and other suspended solids
• Removes contaminants that cause water to smell unpleasant, taste poor and take on unusual colors
• Helps remove harmful bacteria and viruses in your municipal and borehole water systems when treated with a UV Sterilizer. UV Sterilizer Sold separate

Product Specifications

Esybox Mini 3

• Operating range: flow rate up to 80l/min; head up to 55m
• Pumped liquid: clean, free from solids or abrasive substances, non viscous, non aggressive, non crystallized and not chemically neutral
• Liquid temperature range: from 0°C to + 35°C for domestic use and from 0°C + 40°C for other use
• Max. suction depth: 8 meters
• Maximum ambient temperature: +50°C
• Maximum Suction depth: 8 m
• Maximum Operation pressure: 7,5 bar / 750 kPa
• Motor protection class: IP X4
• Motor insulation class: F
• Impeller material: Technopolymer
• Single phase power input: 230 V 50 Hz
• Power cord (m) and plug: 1,5 meter with power plug
• Type of installation: Fixed, vertically, horizontally or on the wall with
• special accessories (supplied separately)
• Certification: WRAS, ACS

Esybox

• Operating range: capacity up to 120 l/min; head up to 65 m
• Liquid temperature range: from 0°C to +35°C for domestic use for other use: from 0°C to +40°C
• Insulation: Horizontal or vertical fixed position
• Maximum operating pressure: 8 bar (800 kPa)
• Flow rate: Up to a 7,2 m3/h
• Head: 65 m
• Type of pumped liquid : Clean, free from solid or abrasive substances, non-viscous, non-aggressive, non-crystallized and chemically neutral
• Liquid temperature : +40°C
• Maximum ambient temperature: +50°C
• Maximum suction depth: 8 m
• Maximum operation pressure: 8 bar / 800 kPa
• Motor protection class: IP X4
• Motor insulation class: F
• Impeller material: Technopolymer
• Single phase power input: 230 V 50 Hz
• Power cord (m) and plug: 1,5 meters with power plug
• Type of installation: Fixed, vertically, horizontally or on the wall with special accessories (supplied separately)
• Certification: WRAS, ACS

Big Blue Filtration System

White Epoxy Coated Triple Bracket

• 3 x 51cm Big Blue Housings are frame mounted
• Inlet/Outlet: 1″ Inch Female
• High Quality – High Flow Filters
• 1 x 5 micron Sediment Filter
• 1 x Carbon Filter
• 1 x 1 micron Sediment Filter
• 1 x Plastic Housing Spanner

What's included?

• 1 x DAB Esybox Pump
• 1 x Big Blue Filtration System

For more information visit DAB.
