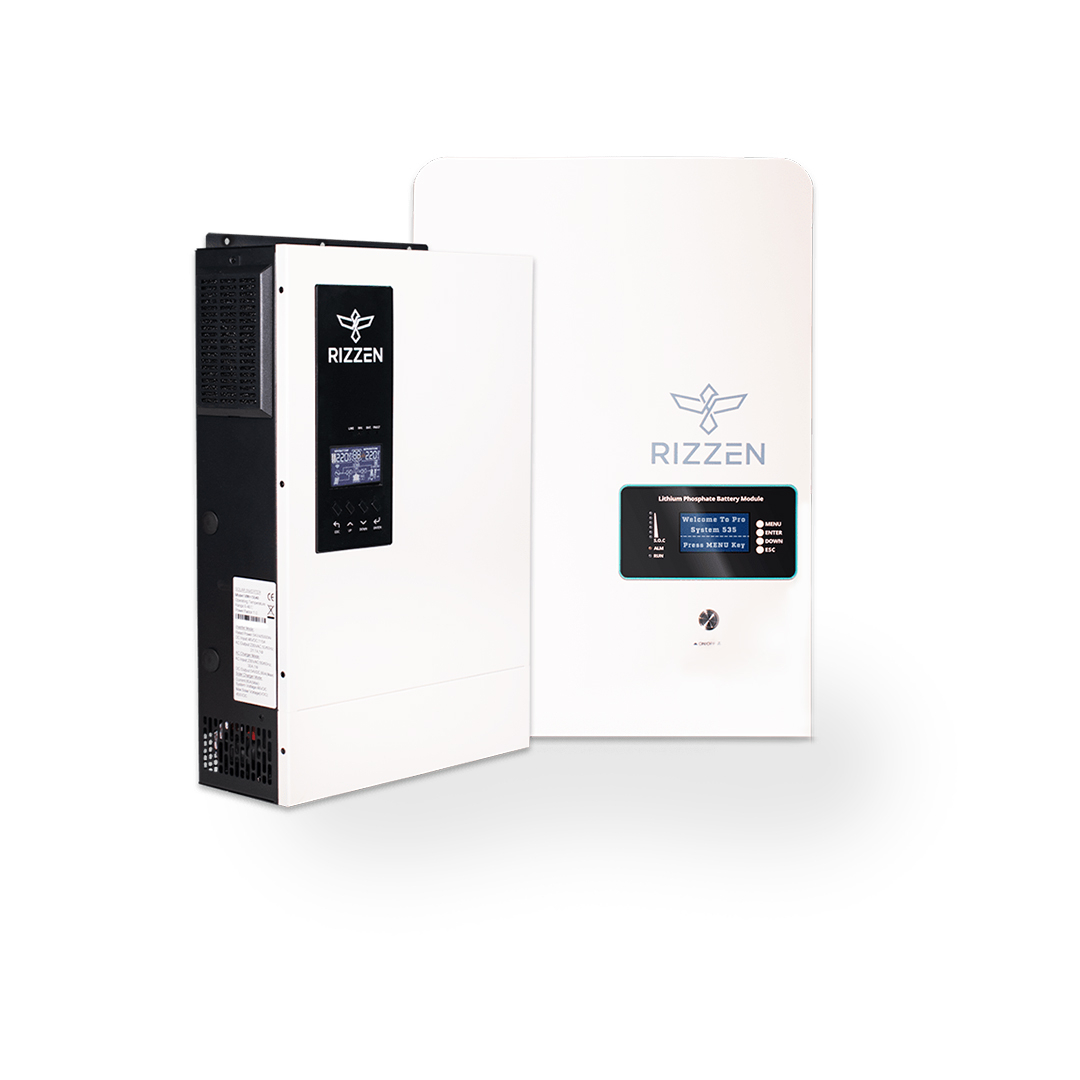

Rizzen5kVa Hybrid Inverter, Battery & 6x Trina Vertex 545W Solar Panels with full installation for Gauteng Customers

Please Note

This deal includes full installation of the Inverter, battery and 6x solar panels on a standard house DB box, up to 5m.

Deliveries will only be made in Gauteng. All other orders will be cancelled and refunded.

For installation please use the preferred service provider by contacting Shuan Flaum from Makida Green (PTY) LTD on 0765319650 with your invoice number as reference. T's & C's Apply.

About

Are power outages causing inconvenience and disruption in your daily life? The Rizzen 5kVa Hybrid Inverter & 6x Trina Vertex 545W Solar Panels Combo is the perfect solution to keep your essential appliances running smoothly, even during loadshedding.

Product Features

Inverter

• Pure Sinewave
• High Voltage Hybrid Inverter
• Battery Cell Equalizer
• Parallel Compatible up to 9 units
• PF1.0
• App compatible with Wifi & Bluetooth
• 2-Year Warranty

Battery

• 6000+ Charge Cycles
• LifePO4 Lithium Battery
• Wall Mountable
• Parallel Compatible up to 16 units
• 5-Year Warranty (Design Life 10 Years)

Solar Panels

• High reliability
• Monocrystalline Panel
• Designed for compatibility with existing mainstream system components
• Up to 21.4% module efficiency with high density interconnect technology
• Ensured PID resistance through cell process and module material control
• The unique design provides optimized energy production under inter-row shading conditions

Product Specifications

INVERTER

• Dimensions: 110 x 300 x 450mm
• Weight: 7.8kg

Input

• Input Format: L+N+PE
• Rated Input Voltage: 208/220/230/240VAC
• Frequency Range: 50Hz/60Hz (Auto Sensing)
• Voltage Range:
• 170~280VAC (for personal computers)
• 90~280VAC (for home appliances)

Output

• Output Format: L+N+PE
• Rated Output Voltage: 208/220/230/240VAC±5%
• Output Frequency: 50/60Hz±0.1%
• Waveform: Pure Sine Wave
• Transfer Time: 10ms (for personal computers & home appliance)
• Peak Power: 10 000 VA
• Peak Efficiency (Battery Mode): >94%
• Overload Capacity
• min@102%~110% Load
• 10s@110%~130%Load
• 3s@130%~150% Load
• 200ms@>150% Load

Battery

• Rated Voltage: 48 VDC
• Constant Charge Voltage : 56.4 VDC
• Float Charging Voltage: 54 VDC

Solar Charging & AC Charger

• Solar Charger Type: MPPT
• PV Maximum Input Power: 5500W
• MPPT Tracking Range: 120~430VDC
• Maximum PV Input Voltage: 450VDC
• Maximum PV Charge Current: 80A
• Maximum Mains Charging Current: 80A
• Maximum Charging Current: 80A

Communication Interface and I/O

• RS232: Baud Rate 2400
• Parallel Interface: Yes Up to 16
• Expansion Slot:
• 2×5PIN/Pitch2.54mm, Lithium Battery
• BMS Communication Card, WIFI and
• Bluetooth Card, Dry Contact card, Etc

Environmental Parameters

• Operating Ambient Temperature: 0~40°C
• Operating Environment Humidity: 20%~95% (Non-Condensing)
• Storage Temperature: -15~60°C
• Altitude:
• Should Not Exceed 1000m
• Derating Above 1000m
• Maximum 4000m, Refer to IEC62040

Certifications

• EN-IEC 60335-1
• EN-IEC 60335-2-29
• IEC 62109-1

BATTERY

Technical Specifications

• Model: LiFeP04 Smart Home Power wall
• Dimensions: 655 x 483 x 178mm
• Terminal: M60
• Weight: 78kg
• Storage Duration: 6 Months at 25C
• Output Current: 15v 2,4A / 19v2A /24V 1,5A | 5V 9V, 12V/3A

Battery

• Battery Type: LiFEP04 (Lithium Phosphate)
• Battery Model: 51.2V 100AH
• Nominal Capacity: 5120Wh
• Adjustable Working Voltage (Vdc): 44.8~58.4V
• Float Charge Voltage (Vdc): 56V
• Max. Continuous Discharge (A): 100
• Max. Pulse Discharge (A): 150A (1sec)
• Cycle Life +25°C 0.2C 80% DOD): 6000
• Cell Equilizer (A): 0.1~5A Max (Optional)

Communication Interface

• Communication Functions: RS484/UART/SNMP/Wifi/Bluetooth

Protection

• Overcharge Protection
• Over-Discharge Protection
• Over Current Protection
• Short Circuit Protection
• Over Temperature Protection

Environmental Parameter

• Operating Environment Humidity: 0~95% (Non-Condensing)
• Storage Temperature: -20~60°C
• Altitude: 3000m
• Noise: ≤40db

Certifications

• EN-IEC 62619
• UN38.3
• MSDS
• CE

SOLAR PANELS

Technical Specifications

• Solar Cells Monocrystalline
• Number Of Cells 110 cells
• Dimensions 2384×1096×35 mm
• Weight 28.6 kg
• Glass 3.2 mm, High Transmission, AR Coated Heat Strengthened Glass
• Encapsulant material EVA/POE
• Backsheet White
• Frame 35mm Anodized Aluminum Alloy
• J-Box IP 68 rated
• Cables Photovoltaic Technology Cable 4.0mm
• Portrait: 350/280 mm
• Length can be customized
• Connector MC4 EVO2 / TS4*

Temperate Ratings

• NOCT(Nominal Operating Cell Temperature) 43°C (±2°C)
• Temperature Coefficient of PMAX – 0.34%/°C
• Temperature Coefficient of VOC – 0.25%/°C
• Temperature Coefficient of ISC 0.04%/°C

Maximum Ratings

• Operational Temperature -40~+85ºC
• Maximum System Voltage 1500V DC (IEC); 1500V DC (UL)
• Max Series Fuse Rating 30A

What's in the Box?

• Includes Installation and labour
• 1 x Rizzen Inverter
• 1x Rizzen Battery
• 6x Trina Vertex 545W Solar Panels
• Battery Cables
• 1 x Change Over Switch
• SURGE protection device
• only 20M solar cable provided
• 5 m 6mm house wire
• Alliminiun roof structure and brackets
• AC Protection Box
• DC Protection Box
