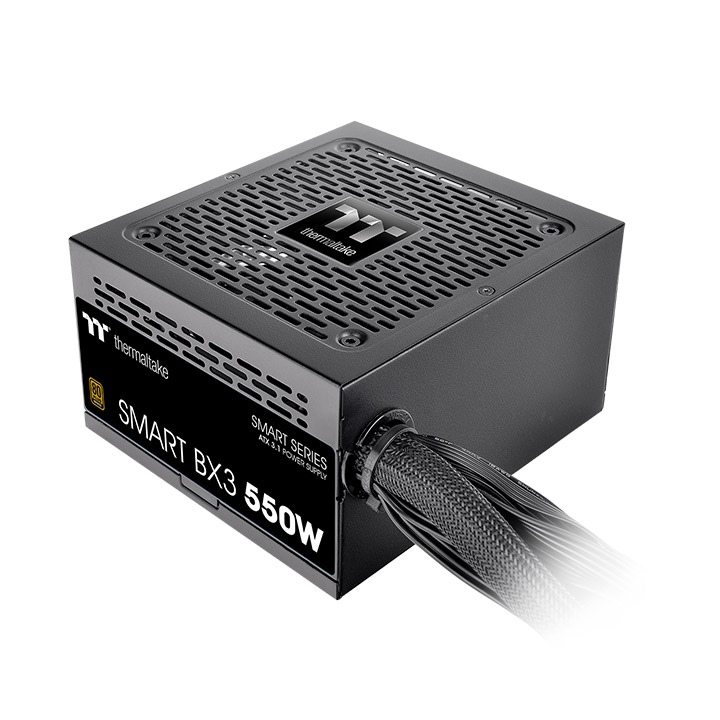

Thermaltake550W Smart BX3 Bronze Power Supply
R1,199
About
The Smart BX3 series is designed to meet ATX 3.1 standards, offering 550W, 650W, and 750W options. It's perfect for budget-conscious users seeking an efficient and reliable entry-level power supply, backed by a solid 5-year warranty.
Product Features
ATX 3.1 Ready
- Smart BX3 series is fully compatible with ATX 3.1 specifications which supports up to 200% power excursion, reaches 60% low load efficiency and complies with required power supply timing standards.
Be Smart, Stay Quiet
- Equipped with a 120mm fluid-bearing fan for superior airflow. Additionally, the built-in Smart Zero Fan spins only when the load reaches a certain percentage to minimize unwanted noise.
High Quality 105°C/221°F Main Capacitor
- High-quality main capacitor greatly improves the power supplies durability and ensures the Smart BX3 series is stable and reliable.
High Amperage Single +12V Rail & DC to DC Design
- Powerful single +12V rail can properly deliver the power you need for the best compatibility. The use of DC to DC circuit design provides very stable operation and enhanced voltage regulation.
Built-in Industrial Grade Protection
- To protect the hardware, Smart BX3 is built with industry-grade protections: OCP(Over Current Protection), OVP (Over Voltage Protection), UVP(Under Voltage Protection), OPP(Over Power Protection), SCP(Short Circuit Protection), OTP(Over Temperature Protection).
Non-Modular Flat Cable Design
- Smart BX3 series comes with soft black cables, designed to make cable installation an easy task while fully powering the system at optimal voltages.
80 PLUS Bronze-Certified and Intel C6/C7 States Ready
- Smart BX3 Bronze series saves energy through its high energy efficiency up to 85% and is certified to 80 PLUS® Bronze. It has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.
Product Specifications
- Model: SPD-0550AH2NLB-3
- Max. Output Capacity: 550W
- Colour: Black
- Dimensions (W/H/D): 150mm x 86mm x 140mm
- PFC (Power Factor Correction): Active PFC
- Power Good Signal: 100-150 msec
- Hold-Up Time: > 17 msec at 80% load
- Input Current: 12A-5A
- Input Frequency Range: 50Hz/60Hz
- Input Voltage: 100-240V
- Operating Temperature: 5°C to + 45°C
- Operating Humidity: 20% to 85%, non-condensing
- Storage Temperature: -40°C to + 55°C
- Storage Humidity: 10% to 95%, non-condensing
- Fan: 12cm FDB Fan
- Efficiency: Meets 80 PLUS® Bronze at 115Vac input
- MTBF: 100,000 hours minimum
- CE/UKCA/LVD/UKCA/FCC/ICES/TUV/CB/cTUVus/BSMI/CCC
- PCI-E 6+2pin
- Smart Zero Fan (fan will not spin until the load exceeds 20%)
- No physical fan switch
- Protection: OCP/OVP/UVP/OPP/OTP/SCP
- Warranty: 5 years
What's in the box?
- 1x 550W Smart BX3 Bronze Power Supply
