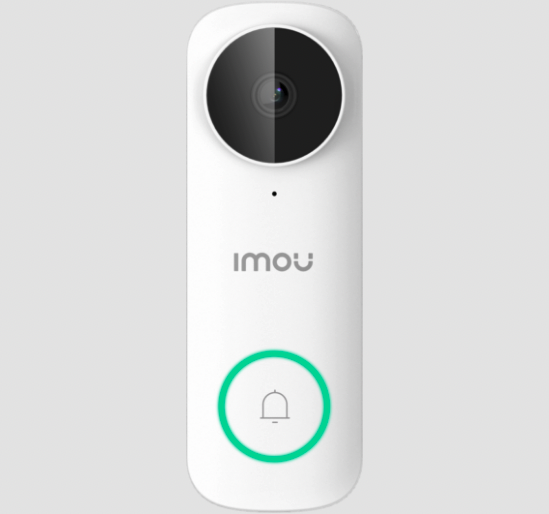

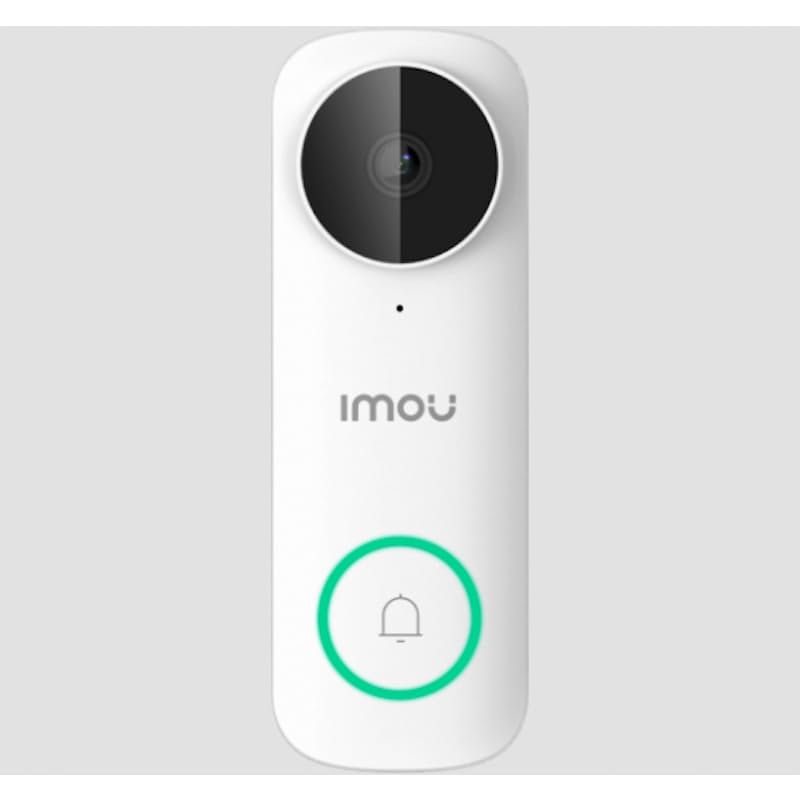

Imou5 MP Wired Video Doorbell (Model: DB61i)

About

DB61i delivers 5MP live monitoring experience with a 5MP sensor. It is able to capture more details with the 164°fish eye lens. DB61i supports night vision mode for clear-as-day clarity even in the pitch dark. With IP65 certified, the doorbell can be used outdoors under different weather conditions. The support of dual-band Wi-Fi enables DB61i to provide more Wi-Fi choices and extend the Wi-Fi connectivity. Furthermore, it is equipped with a smart night light, which can be used to notify motion detections and illuminate at night.

Product Features

• 5MP Resolution
• High-quality sensors present crystal clear videos and recordings
• Full-duplex Two-way Talk
• The built-in speaker and microphone allow you to interact with friends and family or dissuade unwelcome guests
• Quick Response
• Use quick responses to greet visitors who ring your doorbell. You can even record your own custom message
• Weatherproof
• IP65 weatherproof design for use in multiple scenarios
• Night Vision
• Infrared Mode
• Advanced IR algorithms provide clear black-and-white pictures even in darkness
• Off Mode
• Infrared light turned off
• Advanced Human Detection
• The industry-level image processing technology accurately identifies human targets in the streaming to avoid false alert. You can even customize the human detection region to get more accurate notifications
• Fish eye Lens
• 164° ultra wide angle can capture more details
• Shed Light at Your Door
• The spotlight can be motion-detected or scheduled to turn on at a selected time
• Excellent Wi-Fi Performance
• Dual-Band 2.4GHz & 5GHz connectivity enhances the video steam experience without lag
• Chime
• Work with Chime, allowing you to know someone is knocking in any room
• Diversified Storage
• Video is easily stored and accessed through an internal SD card, NVR or Cloud Storage
• Cloud Services
• Cloud makes your life easier with alarm notifications, live video streaming, and one-touch firmware updates

Product Specifications

Camera

• 5 Megapixel progressive CMOS
• 5MP(2560 x 1920)
• Night Vision: 5m(16.5ft) distance
• 2.0mm fixed lens
• Field of View: 164°

Video & Audio

• Video Compression: H.265
• Audio Compression: AAC
• Up to 15fps Frame Rate
• Two-way Bidirectional Talk
• Echo cancellation

Notice Management

• Call Notification
• Motion Detection
• Human Detection
• Configurable Detection Area

Network

• Wi-Fi: IEEE802.11b/g/n,2.4GHz & 5GHz
• Imou life app: iOS, Android

Auxiliary Interface

• Micro SD Slot (up to 256GB)
• Built-in Mic & Speaker
• Reset button
• Micro USB power port

General

• AC16~24V, DC12/24V Power supply
• Power Consumption: Surface mounted
• Working Environment: -20?~+50?, Less than 95%RH
• Dimensions: 110 × 45 × 23mm (4.3 × 1.8 × 0.9inch)
• CE, FCC, FCC ID, IC, IC ID
• IP65
• 12-month warranty

What's In The Box

• 1 x Imou 5MP Wired Video Doorbal - DB61i
• 1 x Quick Start Guide
