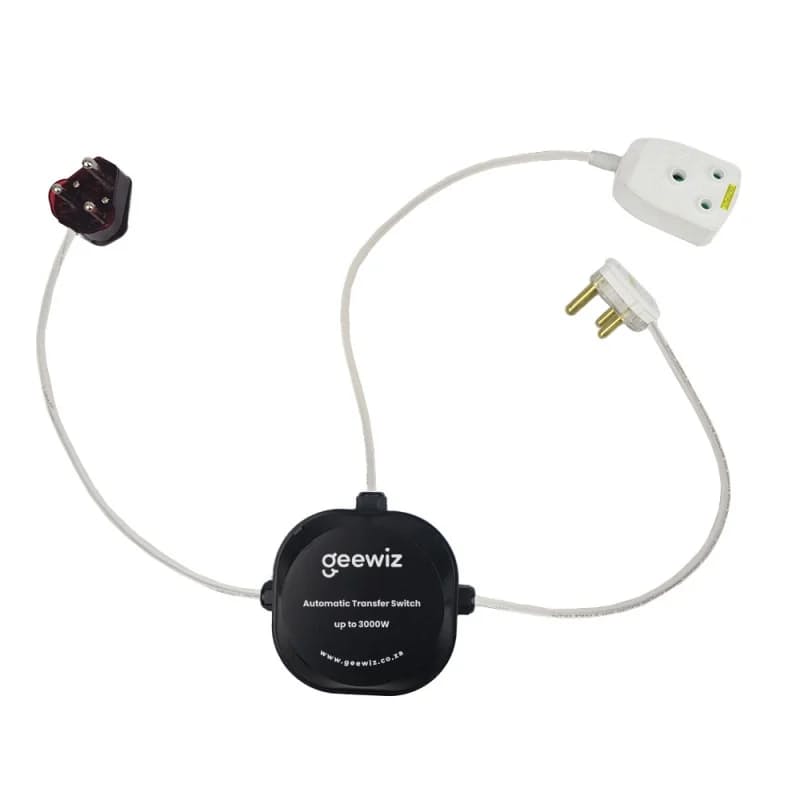

GeeWiz230V/3000W Automatic Inverter Transfer Switch (ATS)

About

The easy solution to portable inverters without a UPS function. Have an inverter without a built-in UPS? Does your inverter battery drain faster than it charges? The Automatic transfer switch will solve your problem with it's 25ms changeover time.

The device is designed for a plug-and-play setup between your electric devices and the 230V output of either the inverter or Eskom supply.

If Eskom is active, the Automatic Transfer Switch (ATS) channels the electricity to your devices. However, if there's an interruption in the Eskom supply—due to load shedding or maintenance—the inverter takes over to supply power, ensuring continuous power supply. As soon as Eskom resumes, the system will seamlessly transition back from the inverter. This switch is automated, removing the need to manually transfer power sources. Essentially, this mimics Uninterrupted Power Supply (UPS) characteristics by providing uninterrupted power. The inputs from both the grid and inverter are kept separate, safeguarding against any possible electrical backflow, thereby preventing potential inverter damage or grid issues.

Product Feature

Advantages

• Reduced inverter consumption when there's no load shedding.
• Keeps your CPAP machine running even during night-time power cuts.
• Connect it to your portable power kit to maintain power for your TV, set-top box, streaming device, etc.
• Avoid computer restarts during power switchovers due to load shedding.
• Prolong battery life by ensuring no power is drawn when on Eskom.
• Enhance safety by linking to your security camera system for automated switching.
• Plus, countless other applications where uninterrupted power is essential.

Key Features

• Robust and safe design.
• Automated transition between power sources.
• Hassle-free plug-and-play setup.
• Two-way plug adapter.
• Separate circuits for inverter and Grid.

Product Specification

• Standard 230V / 16A plugs.
• Adapter for 230V / 16A.
• Double-end plug adapter.
• Comes with three 60cm electric cables.
• Rated for 3000W.
• Instructions:
• Connect the plug labelled GRID to your home or office wall outlet and turn it on.
• Link the plug marked INVERTER to the inverter's 230V output and activate it.
• Connect your devices (like Computers, Routers, TVs, etc.) to the port named OUTPUT.
• The system will seamlessly switch between Eskom and Backup power.
• Please note:
• Don't surpass the 3000W power limit.
• Ensure correct connections as per the provided diagram.
• Incorrect setup might prevent automated switching.
• Avoid opening the device; it can lead to a void warranty and risk of electric shock.
• While not an inverter itself, it works alongside one.
• Not suitable for inductive loads like motors, generators, and compressors.
• Compatible with both pure and modified sine wave inverters.
• Comes with a built-in surge protection plug on the grid side.

What's In The Box?

• 1x GeeWiz Automatic Inverter Transfer Switch
