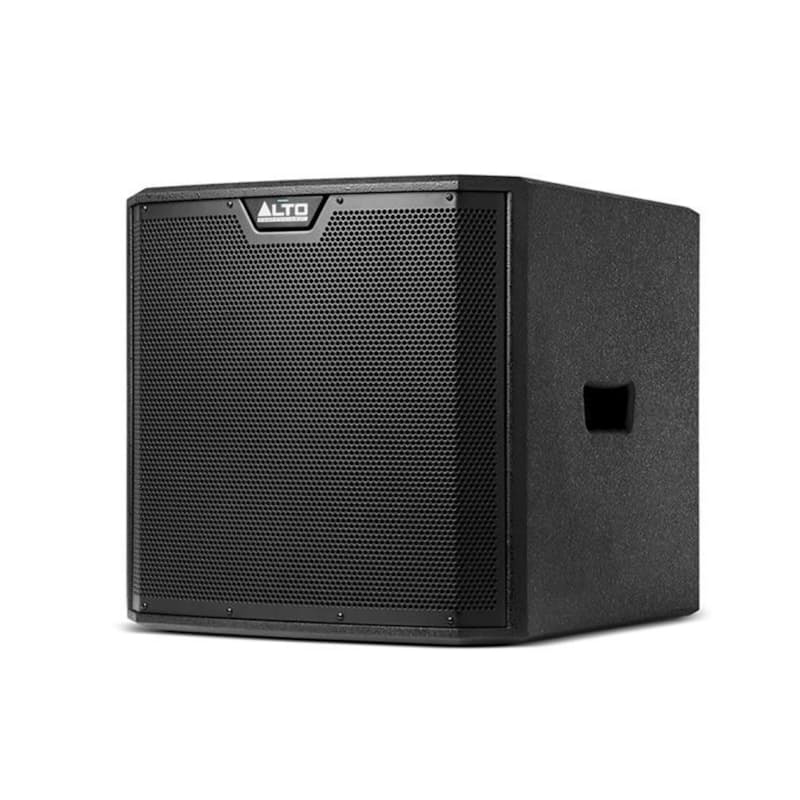

Alto Professional12" TS312S 2000W Powered Subwoofer

About

There are times when your sound system needs additional low-frequency output and "punch". For those situations, Alto Professional proudly offers the TS312-powered subwoofer. This subwoofer extends the bass response of virtually any full range speaker, relieving that speaker of the difficult task of having to reproduce the low bass frequencies. The result? A system with stunning wide-range response characterized by dramatic, impactful low frequencies and effortless, undistorted mids and highs. The listening audience will hear everything with perfect clarity, from the lowest bass synth tones to the highest percussion bells and everything in between.

Strong, clear output is only half the battle, however in order for a subwoofer to be part of an ideal speaker system, it has to blend seamlessly with the companion speaker. This is where the Alto Professional’s TS315S truly excels. All TS3-series subwoofers have a choice of six selectable DSP output modes, so the subwoofer’s frequency response and crossover frequency are perfectly matched to the speaker it’s being used with.

Product Features

•     2000 watts of peak power output
•     High-efficiency Class D amplifier
•     Transducer: 12-inch with 3-inch high-temperature voice coil
•     (2) XLR+1/4-inch combo inputs + (2) balanced XLR line outputs
•     XLR outputs, with six discreet output modes for ideal matching with companion speaker
•     Polarity Reverse switch and Extended LF switch for increased EQ control
•     Electronic clip, thermal and transducer overdrive protection
•     Rugged, internally-braced front-ported MDF cabinet with integrated 36mm pole socket
•     Rugged, mar-resistant splatter-spray finish always looks good, even with heavy use
•     Designed and tuned in the USA

Product Specifications

•     Output Power: 2000 W peak, 1000 W continuous
•     Amplifier: High-efficiency Class D amplifier
•     Transducer: 12” (305 mm) woofer, 3” (76 mm) voice coil
•     Frequency Response: 44HZ – 95Hz (- 3 dB)
•     Frequency Range: 38Hz – 110Hz (-10 dB)
•     Maximum SPL: 129 dB (@ 1 m) 126 dB continuous (dB SPL @ 1 m)
•     Connections: (2) XLR+1/4” (6.35 mm) inputs; (2) XLR outputs; (1) IEC power cable input
•     Input Level: Line +4 dBu (nominal)
•     External Controls: Volume control, output mode switch, polarity-reverse switch, extended low-frequency switch, power switch
•     Indicators: Signal/clip limiter LED, polarity-reverse LED, extended low-frequency LED, power switch LED
•     Electronic Protections: Electronic clip, thermal and transducer overdrive protection
•     Enclosure: Internally braced MDF cabinet; 36 mm mounting pole socket on top panel
•     Rugged, mar-resistant splatter-spray finish always looks good, even with heavy use
•     Power Connection: IEC with Mains Fuse
•     AC Voltage Input: 100,110-120,220–240 V, 50/60 Hz
•     Consumption: 1000 W Fuse: T10AL AC250V (100–120 V) or T5AL AC250V (220–240 V)
•     Dimensions (H x W x D): 17.9” x 18.1” x 19.9” / 456mm x 459mm x 505mm
•     Weight: 25 kg
•     Design Origin: Designed and tuned in the USA
•     Accessories: TS312S Cover
